Procedure for setting up kiln
last update 20/Aug/2011 change email address
|
|
|
| １．Level the ground | ２．Set the ALC boad flat and level (Lower part insulation) |
３．Place the kiln on the ALC boad |
|
|
|
|
| ４．２０cm space between the front concrete block | ５．Autoclaved Light concrete boards on side also |
6.Xomplete kiln with chimney attached |
|
|
|
|
| ７．Precautions against rain | 8.Long ALC boaada and ceramic blancket 1300℃ |
Temperature measurement (Model ＦＴ-50 Anritsu Co.) |
| 【Return to Main】 |
|
Copyright By M.Iwasaki |
| Photos for fixing one kiln in place wiwth pipes. | ||
|
|
|

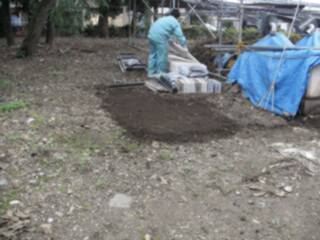

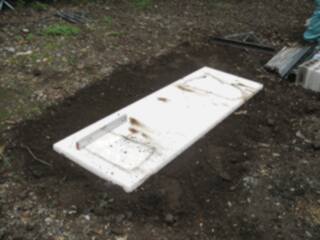

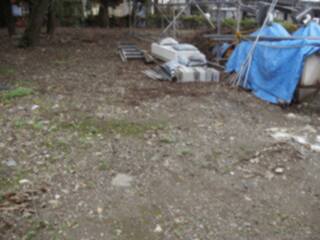

| 1.Before leveling thye ground. | 2.Ground is Leveled. | 3.ALC is placed flat. |
|
|
|
| 4.Soil is Leveled around the ALC board too. |

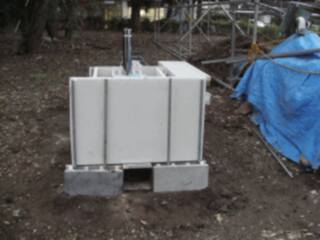

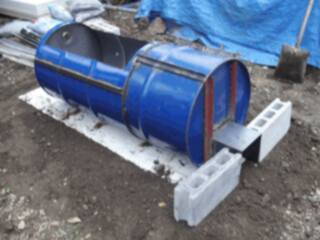

5.Set heavy blocks and kiln in place. | 6.ALC board is fixed in place with pipes. |
|
|
|
| 7.Surroun the kiln with ALC boards, fix in place with sticks. |

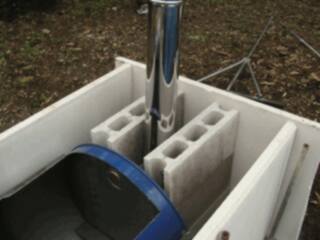

8.Stack 3 blocks on each side of the chimny. |

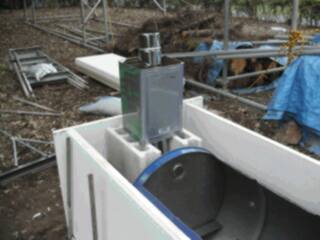

9.Attack the 18 Liter(5gallon) can. |
|
|
|

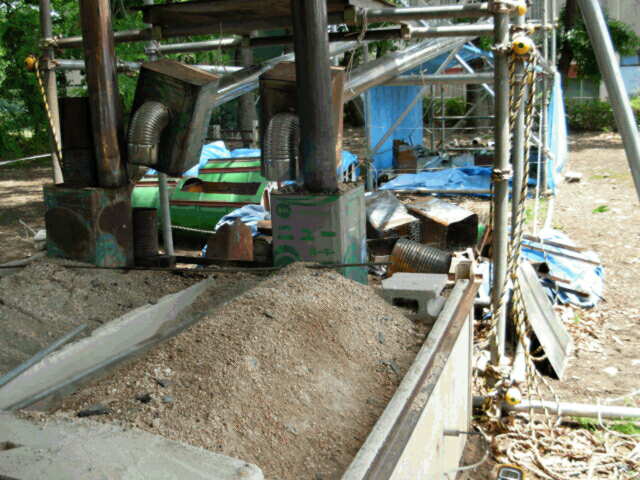

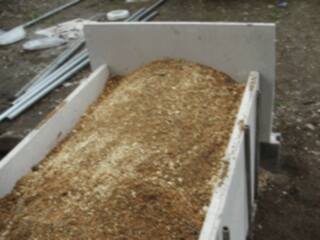

| 10.Put in insulation soil-biomass mixture. |

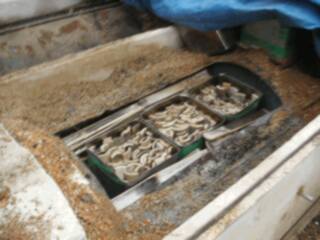

11.How to pack kiln bamboo. (horizontary) |
12.How to pack kiln bamboo. (Pack cans with bamboo vertically) |
|
|
|

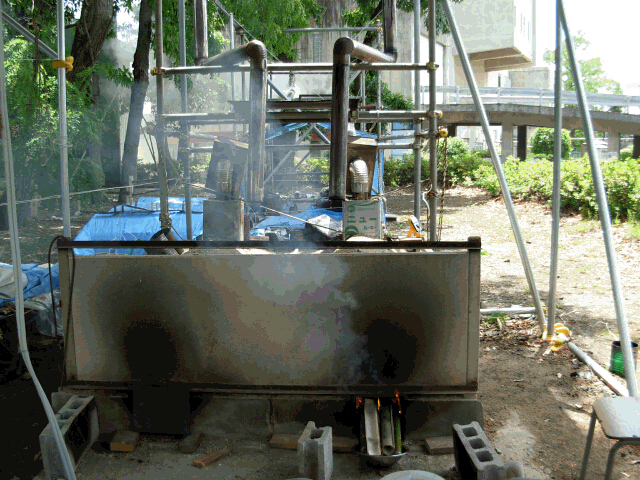

| 12.A total photograph. | 13.Thermometry in one place. | 14.Thermometry in three places. |
|
||
| The details of the thermometry department. |
Making charcoal kiln if the charcoal was, thank you a report of doneness.
